Tillage Equipment FOR SALE IN MANITOBA

Tilling soil prepares fields for planting and can help to control weeds. However, there are some disadvantages to tilling that should be considered. When tilling is necessary, having the right tillage equipment can protect the soil while creating the environment needed for a successful growing season. When it comes to finding tillage equipment for sale, you can count on the experts at Avonlea Farm Sales Ltd to have just what you are looking for.

Founded by farmers in 1988, the experts at Avonlea Farm Sales Ltd have first-hand experience within the farming industry and understand the unique needs of farmers. With a commitment to providing high-quality farming equipment, you’ll find tillage implements, including chisel plows, disc plows, disc harrows, land rollers, and more, within our inventory. Contact a member of our team today to discuss the unique needs of your farm and find the tillage machine that is best suited to your needs.

ID # 17354884

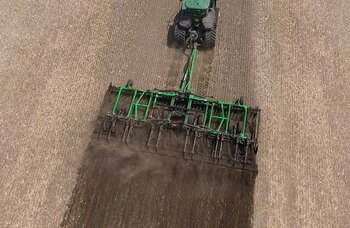

Summers DT Diamond Disk

Call for Price
Overview

The DT Diamond Disk is a cross between conventional and vertical tillage. It's 25-inch notched or full disks have low concavity, making the implement ideal for use in heavy residue and wet conditions. Unlike traditional X-frame implements, the Diamond Disk doesn’t need feathering disks, allowing it to produce clean cuts along field edges and make turns with the disks still in the ground. Additionally, the unique diamond shape helps eliminate ridging, skipping, gouging and rock damage, which are common effects from other tillage tools.

Applications: Spring Tillage, Spring Residue Management, Fall Tillage, Fall Residue Management ,  Conventional Tillage, Vertical Tillage, Seedbed Preparation

Specifications
Model
DT Diamond Disk
Sale Type
New
Manufacturer
Summers
models
  DT9510 (16')
Working Width 16’
Transport Width 16'
Total Blades 35
Blade Spacing 10"
Gang Shaft Diameter 2"
Weight Per Blade 383 lbs.
Weight Per Foot 838 lbs.
Frame 4" x 6" tubing
Floating Hitch Length 9.5'
Hubs, Center 8-bolt, HD
Tires, Center IF320/70R15
Estimated Weight* 13,400 lbs.
Approx. Engine HP* 120-160
  *  Weight and HP requirements without mounted attachments
                                                                                                                DT9530 (21'-28.5' narrow center)
Working Width 21’ 25' 28.5’
Transport Width 16' 16' 10" 16' 10"
Transport Height 10' 10' 8" 13' 9"
Transport Length 30' 10" 30' 10" 30' 10"
Total Blades 47 59 67
Blade Spacing 10" 10" 10"
Gang Shaft Diameter 2" 2" 2"
Weight Per Blade 383 lbs. 375 lbs. 348 lbs.
Weight Per Foot 857 lbs. 884 lbs. 818 lbs.
Frame 4" x 6" tubing 4" x 6" tubing 4" x 6" tubing
Floating Hitch Length 9.5' 9.5' 9.5'
Hubs, Center I6-bolt, HD* 6-bolt, HD* 6-bolt, HD*
Hubs, Wing 6-bolt, HD* 6-bolt, HD* 6-bolt, HD*
Tires, Center IF280/70R15** IF280/70R15** IF280/70R15**
Tires, Wing IF280/70R15** IF280/70R15** IF280/70R15**
Estimated Weight 18,000 lbs. 22,100 lbs. 23,300 lbs.
Approx. Engine HP 157-210 188-250 214-285
*  8-bolt HD optional
** IF320/70R15 optional
*** Weight and HP requirements without mounted attachments
  DK2610 (18.5'-47' standard)
Working Width 18.5’ 21.5’ 24.5’ 28’
Transport Width 19' 2" 22' 4" 20' 6" 20' 6"
Transport Height 6' 6' 9' 10' 9"
Transport Length 34' 34' 34' 34'
Total Blades 42 50 58 66
Blade Spacing 10" 10" 10" 10"
Gang Shaft Diameter 2" 2" 2" 2"
Weight Per Blade 307 lbs. 282 lbs. 322 lbs. 317 lbs.
Weight Per Foot 697 lbs. 656 lbs. 763 lbs. 746 lbs.
Frame 4" x 6" tubing 4" x 6" tubing 4" x 6" tubing 4" x 6" tubing
Floating Hitch Length 12' 12' 12' 12'
Hubs, Center 6-bolt, HD* 6-bolt, HD* 6-bolt, HD* 8-bolt, HD
Hubs, Wing N/A N/A 6-bolt, HD* 8-bolt, HD
Tires, Center IF280/70R15** IF280/70R15** IF280/70R15** IF320/70R15
Tires, Wing N/A N/A IF280/70R15** IF320/70R15
Estimated Weight 12,900 lbs. 14,110 lbs. 18,700 lbs. 20,900 lbs.
Approx. Engine HP 136-181 158-211 180-240 206-274
*  8-bolt HD optional
** IF320/70R15 optional
*** Weight and HP requirements without mounted attachments
*  8-bolt HD optional
** IF320/70R15 optional
*** Weight and HP requirements without mounted attachments
  DK2610 (18.5'-47' standard)
Working Width 32.5' 38.5' 44.5' 47'
Transport Width 20' 6" 22' 22' 22'
Transport Height 13' 15' 10" 18' 10" 14' 7"
Transport Length 34' 37' 37' 37'
Total Blades 78 94 110 114
Blade Spacing 10" 10" 10" 10"
Gang Shaft Diameter 2" 2" 2" 2"
Weight Per Blade 294 lbs. 290 lbs. 263 lbs. 269 lbs.
Weight Per Foot 705 lbs. 708 lbs. 649 lbs. 653 lbs.
Frame 4" x 6" tubing 4" x 6" tubing 4" x 6" tubing 4" x 6" tubing
Floating Hitch Length 12' 12' 12' 12'
Hubs, Center 8-bolt, HD 8-bolt, HD 8-bolt, HD 8-bolt, HD
Hubs, Wing 8-bolt, HD 8-bolt, HD 8-bolt, HD 8-bolt, HD
Tires, Center IF320/70R15 340/65R18 340/65R18 340/65R18
Tires, Wing IF320/70R15 340/65R18 340/65R18 340/65R18
Estimated Weight 22,900 lbs. 27,250 lbs. 28,900 lbs. 30,700 lbs.
Approx. Engine HP 239-318 283-377 327-436 348-460
*  8-bolt HD optional
** IF320/70R15 optional
*** Weight and HP requirements without mounted attachments
*  8-bolt HD optional
** IF320/70R15 optional
*** Weight and HP requirements without mounted attachments
options

Green or Red – You Choose

Brand loyalty is fierce between Team Red and Team Green in the agriculture world, which is something Summers has long understood. Well, we’ve listened and are offering you a choice. Now any time you order custom equipment from Summers, pick between the color that fits your operation best – green or red. It’s that simple.

features and benefits

sup Diamond Technology

A. Diamond shape floats over rocks without damage
B. 19-degree front gang moves soil inward
C. 18-degree rear gang returns soil outward to eliminate ridging without the use of outside feathering disks
D. The rear, center finishing coulter sizes residue and levels the soil
E. Triangular wheel arrangement prevents ridging, skipping and gouging
F. Finishing options create the ideal seedbed

VRT Notched Disk Blades

The DT Diamond Disk uses 25-inch diameter blades with 1-7/8-inch concavity, making it ideal for sizing heavy residue and working in wetter soil conditions. The blades are mounted on heavy-duty 2-inch shafts and include adjustable mud scrapers that flex with the disk blades. Duracoat disk blades with WEAR-TUFF lining are also available to extend blade life by as much as 3 to 5 times.

flotation Floating Hitch

Tillage depth is not affected by the tractor wheels, thanks to the floating hitch. Side draft is also practically eliminated because the disk pulls evenly.

sup Super-Flex™ C-Shanks and Ductile Cast Spools

The Super-Flex C-Shanks are an exclusive feature from Summers to absorb shocks and extend the life of the tillage components. To further maximize durability, the toggle-mounted, triple-seal ball bearings are designed to self-align as the gang flexes, and the spools are ductile cast for superior strength.

sup Finishing Coulter Gang

The rear, center finishing coulter gang sizes residue and levels the centerline to provide a uniform soil profile. It uses active hydraulic down pressure for maximum performance.

sup Single-Point Depth Control

The depth setting for the entire implement can be adjusted from just one of the hydraulic cylinders.

sup Mounted Rolling Baskets

Featuring a patent-pending internal mud scraper, the rolling baskets option is ideal for breaking up clumps and providing a uniform soil profile in most conditions.

sup Mounted Harrows

3-bar harrows can be adjusted for deep or shallow penetration. They feature a heavy, yet flexible design for floating over rocks and deep ditches.

sup Caster Wheels

Dual caster wheels can be added to the floating hitch on DT2510 series Diamond Disks.
