Grain Handling Equipment for Sale in Manitoba

Choose from Springland U-trough grain augers, Batco grain conveyors, Meridian grain conveyors, and Westfield grain augers



  Back
ID # 16778973

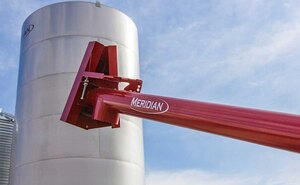

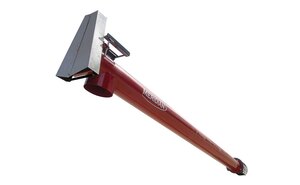

Meridian Utility Auger

  • Meridian Utility Auger
  • Meridian Utility Auger
  • Meridian Utility Auger
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Utility Auger
Meridian is excited to introduce our new line of Utility Augers. These augers are available in 4’’, 6’’, 8’’ and 10’’ diameters, and are available for your seed, drying and feed handling operations.  Each model features a standard 16’ auger and motor mount with 5’, 10’, or 15’ extensions.



Specifications
Model
Utility Auger
Category Name
Augers and Conveyors
Year
2021
Sale Type
New
Manufacturer
Meridian
models
  4″ 6″ 8″ 10″
Motor Pulley required 2B 3 1/2″ – 4 1/4″ 2B 3 1/4″ – 4″ 2B 3 1/4″ – 3 1/2″ 2B 3 1/4″ – 3 1/2″
Flighting speed 510 – 620 480 – 580 480 – 510 480 – 510
Supplied Belt Size B44 B44 B44 B44
Horsepower Requirements 16′ – 21′ 3/4 – 1 1.5 – 2 3 3 – 5
Horsepower Requirements 26′ – 31′ 1 – 1.5 3 5 5 – 7.5
Horsepower Requirements 36′ – 41′ 1.5 – 2 3 – 5 5 – 7.5 7.5 – 10
Horsepower Requirements 46′ – 51′ 2 – 3 5 7.5 – 10 10 – 15
Horsepower Requirements 56′ – 61′ N/R 7.5 10 15 – 20

features



1. Heavy-Duty Build
2. Continuous Flighting
3. Splined Couplings for Extensions
4. Powder Coat Finish
5. Intake Shield Available

Optional Features
1. Mounting Kit
2. Auger Boot
3. Universal Boot




applications
1. Movement of crops into large storage bins:
2. Grains
3. Pulse crops
4. Oil seeds
5. Beans/legumes
