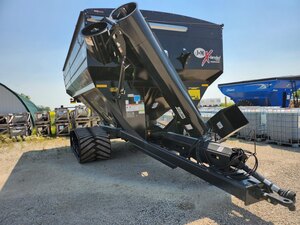

J&M RX1412-20T RIGHT HAND AUGER Grain Cart c/w Tracks

CANADA PROUD BLACK MIDNIGHT EDITION RIGHT HAND AUGER GRAIN CART

1425 Bushel Capacity

Right Hand 20" Discharge BULLET Auger (up to 600 BPM on pto)

Side Shooter Hydraulic Auger Spout

V4 36" X 139" Self Adjusting Tracks

5 Point Scales for Optimum Accuracy

iFarm Bluetooth Scale Monitor

Auto Gate Truck Loading System

Factory Roll Tarp

Lock-N-Load Auger Fold Lockout during unload

Avonlea QR150 150 FOAM Quick Response Fire Suppression Skid

c/w 150 imp gallon tank, Honda GX200 2" pump, Scotty firefighting nozzle with foam cartridge, and 100' X 3/4" fire hose on an industrial Cox reel.

12 Series X-Tended Reach Grain Carts
Maximum Upward, Outward and Forward Auger Reach

Models 812 • 1012 • 1112 • 1312 • 1412 are available in traditional left hand unload auger & optional right hand unload auger to suit your specific needs.

THESE J&M 12 SERIES GRAIN CARTS ARE EQUIPPED WITH MORE STANDARD FEATURES THAN THE COMPETITION OFFERS AS OPTIONS!

Lock N Load prevents accidental folding of the auger during unloading.

Side Shooter Hydraulic Spout pivots directly accross the truck box for ultimate control during unloading.

Front corner extended reach "Bullet" auger provides maximum visability during unload.

Side mounted fold away ladder provides safe entry into the grain tank

Choice of RED, GREEN, BLUE, YELLOW, AND BLACK Exterior

AVAILABLE OPTIONS

5 Point Scales for superior accuracy

IFarm Bluetooth Scale Monitor

Auto Gate truck loading system

Roll Tarp

Swivel Ball Hitch with 45 degree range of pivot to reduce drawbar hitch play

Hydraulic Drive for customers without PTO

Single Flotation Lug Tires

Stabilizer Trax2 suspension tracks

12 Series Grain Carts have Computer Balanced BULLET Augers c/w Reinforced Flighting

A 20" BULLET auger with double flighting an the intake end will unload as quickly as a 22" auger! Computer balanced bullet augers (within 1 oz.) with reinforced flighting at critical wear points and 7/16” Max Edge Flighting with 7” or 10” pitch at intake for maximum unload speed and durability.

Computer balanced bullet augers (within 1 oz.) with reinforced flighting at critical wear points and 7/16” Max Edge Flighting with 7” or 10” pitch at intake for maximum unload speed and durability.

12 Series Models have Excellent Cleanout

All J&M grain carts have built a solid reputation for excellent cleanout... even in high moisture grain. The secret is in the tank design, allowing the grain to enter the sump at different speeds. This creates a boiling effect that prevents bridging in high moisture grains.

V4 Track Systems are an Economical Track System Designed for Grain Carts up to 1500 Bushel

V4 Trach Systems have many similar features to the Stabilizer Trax2, but do not have Suspension or Side Pivot.

J&M’s V4 track design features optimized geometry that utilizes a larger footprint for minimal compaction. Uniform spacing of the bogie wheels also helps reduce compaction. The improved spring tensioner requires less maintenance and creates a more uniform footprint that reduces rolling resistance. Unlike bronze bushings that require periodic greasing throughout the harvest season, V4 tracks utilize composite sleeve bushings. A single greasing before harvest can last the entire season and maximize the life and performance.

• 1 Swivel Hitch Alignment

  The convenient alignment mechanism uses two bolts for adjustment and is accessible from each side of the cart. Two steel keepers prevents loosening during operation.

• 2 Upper Tensioning Roller

  The upper tensioning roller keeps tension on the belt, limiting unsightly belt flop.

• 3 Tensioner

  V4 tracks feature a maintenance-free "Set it and forget it" spring tensioner, which eliminates the need for adjustment once set.

---

	V4 Track System	V4 Track System
Belt Width	36"	36"
Overall Length	119"	139"
Footprint:  Size  Area	36"x87.7"/track 6,310 in²	36"x107.1"/track 7,710 in²
Overall Weight (Single Track)	3,950 lbs/track	4,700 lbs/track
Average Ground Pressure	13.0 psi*	13.0 psi*
*Measured using 1,175 bushel grain cart for V4 LT and 1,500 bushel grain cart for V4.
