Tillage Equipment FOR SALE IN MANITOBA

Tilling soil prepares fields for planting and can help to control weeds. However, there are some disadvantages to tilling that should be considered. When tilling is necessary, having the right tillage equipment can protect the soil while creating the environment needed for a successful growing season. When it comes to finding tillage equipment for sale, you can count on the experts at Avonlea Farm Sales Ltd to have just what you are looking for.

Founded by farmers in 1988, the experts at Avonlea Farm Sales Ltd have first-hand experience within the farming industry and understand the unique needs of farmers. With a commitment to providing high-quality farming equipment, you’ll find tillage implements, including chisel plows, disc plows, disc harrows, land rollers, and more, within our inventory. Contact a member of our team today to discuss the unique needs of your farm and find the tillage machine that is best suited to your needs.

  Back
ID # 16772080

Lemken Rubin 12

  • Lemken Rubin 12
  • Lemken Rubin 12
  • Lemken Rubin 12
  • Lemken Rubin 12
  • Lemken Rubin 12
  • Lemken Rubin 12
  • Lemken Rubin 12
  • Lemken Rubin 12
  • Lemken Rubin 12
  • Lemken Rubin 12
Specs & Literature
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

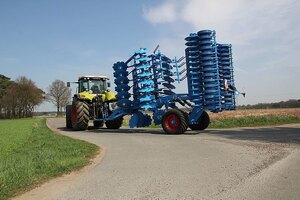

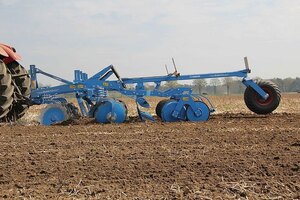

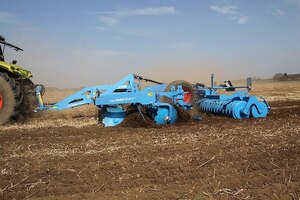

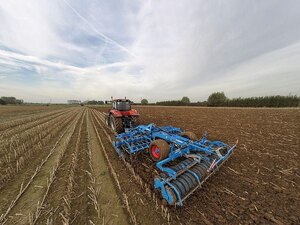

Rubin 12

Compact disc harrow with deep impact

With the Rubin 12, LEMKEN’s range of compact disc harrows includes an implement that can operate at the same 20 cm working depth as a cultivator. The Rubin 12 is therefore suitable both for stubble cultivation and for primary soil tillage, even in very heavy soil conditions.

  • Two rows of serrated concave discs with a diameter of 736 mm produce intensive mixing and crumbling.
  • The symmetrical arrangement of the discs in each row enables working without lateral pull, even at high driving speeds.
  • The 20° angle of the discs to the soil and the 16° angle to the direction of travel ensure optimum penetration and enable cultivation across the full width from a working depth of 7 cm.
  • The legs are specially curved and coiled and thus provide maximum clearance between the discs. This prevents blockages, along with the slight offset of the middle discs.
  • High speeds of travel at reduced slip result in lower fuel consumption and a higher acreage performance.
  • An impact harrow behind the first row of discs produces intensive mixing and crumbling, while a levelling harrow behind the second row distributes and levels the soil optimally.
  • In the mounted version, the Rubin 12 can be equipped with a Uni wheel, which transfers loads to the front axle when the implement is raised. This version includes a novel semi-mounting system that does not require an additional control unit.


  Technical Data



Rubin 12

 Rubin 12/300 U Rubin 12/350 U Rubin 12/400 U
Body Spacing 300 350 400
Tractor output (HP) 135 - 240 158 - 280 180 - 320
Tractor output (kW) 99 - 177 116 - 206 132 - 235
Weight (kg) 2046 2141 2616
Discs 18 18 22
Discs diameter 736 736 736



Rubin 12 KUA Rubin 12/400 KUA Rubin 12/500 KUA Rubin 12/600 KUA Rubin 12/700 KUA
Body Spacing 400 500 600 700
Tractor output (HP) 180 - 320 225 - 400 270 - 480 315 - 560
Tractor output (kW) 132 - 235 165 - 294 199 - 353 232 - 412
Weight (kg) 4402 5257 5732 6630
Discs 22 30 34 42
Discs diameter 736 736 736 736


   Standard Equipment

Rubin 12

  • Ohne Walze
  • Unterlenkeranschluss Kat. 3 (wahlweise Kat. 3N=L2 Z3 oder 4N=L3 Z4)
  • Rahmenhöhe 80 cm
  • Integrierter Prallstriegel hinter erster Scheibenreihe, Nivellierstriegel hinter zweiter Scheibenreihe
  • Einklappbare äußere Hohlscheiben
  • Hohlscheiben 736 x 6 mm gezackt mit automatischer Überlastsicherung
  • Seitenschilde

Rubin 12 KUA

  • Ohne Walze
  • Ohne Beleuchtungsanlage
  • Ohne Bremsanlage
  • Integrierte Aufsatteleinrichtung
  • Achse mit Radgröße 550/45-22.5
  • Unterlenkeranschluss Kat. 3 (wahlweise Kat. 3N=L2 Z3, 4N=L3 Z4 oder 4=L4 Z4)
  • Rahmenhöhe 80 cm
  • Integrierter Prallstriegel hinter erster Scheibenreihe, Nivellierstriegel hinter zweiter Scheibenreihe
  • Hohlscheiben 736 x 6 mm gezackt mit automatischer Überlastsicherung
  • Hydraulische Transportverriegelung
  • Hydraulische Arbeitstiefeneinstellung
  • Seitenschilde



Specifications
Model
Rubin 12
Category Name
Tillage Equipment
Sale Type
New
Manufacturer
LEMKEN
Videos

Videos

Documents

Documents

What Fertilizer Storage Options Are Available?

Fertilizer plays an important role in the success of your growing season. After using tillage equipment, you may want to apply pre-plant fertilizers, and you’ll want to ensure that you have an adequate fertilizer storage solution for your farm. At Avonlea, we supply both dry hopper fertilizer and liquid fertilizer storage solutions. Contact a member of our team for support in finding the ideal fertilizer storage solution for your farm.

Which Tractor Type is Right for My Farm?

Tractors are necessary when looking to effectively use tillage equipment. When you are looking for tractors for sale, the experts at Avonlea have an ideal solution for your needs. Contact a member of our team and find the small, mid-size, or higher horsepower tractor that is perfectly suited to the operational and tillage needs of your farm.
