Tillage Equipment FOR SALE IN MANITOBA

Tilling soil prepares fields for planting and can help to control weeds. However, there are some disadvantages to tilling that should be considered. When tilling is necessary, having the right tillage equipment can protect the soil while creating the environment needed for a successful growing season. When it comes to finding tillage equipment for sale, you can count on the experts at Avonlea Farm Sales Ltd to have just what you are looking for.

Founded by farmers in 1988, the experts at Avonlea Farm Sales Ltd have first-hand experience within the farming industry and understand the unique needs of farmers. With a commitment to providing high-quality farming equipment, you’ll find tillage implements, including chisel plows, disc plows, disc harrows, land rollers, and more, within our inventory. Contact a member of our team today to discuss the unique needs of your farm and find the tillage machine that is best suited to your needs.

  Back
ID # 16772087

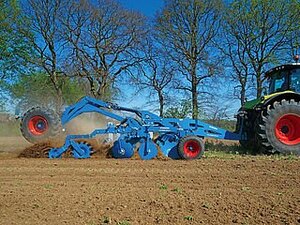

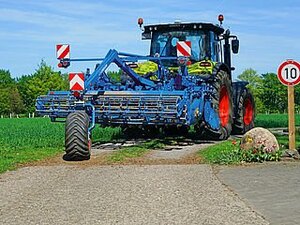

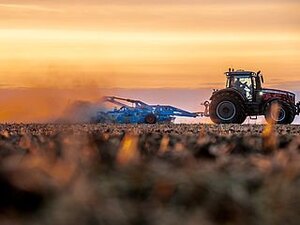

Lemken Rubin 10

  • Lemken Rubin 10
  • Lemken Rubin 10
  • Lemken Rubin 10
  • Lemken Rubin 10
  • Video Button
Specs & Literature
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Always straight, without counter-steering

The Rubin 10 sets new standards in the field of compact disc harrows and offers a wide range of improvements. Even under difficult conditions, the Rubin 10 ensures intensive and homogeneous mixing of organic matter and soil up to a working depth of approx. 14 cm.  This allows it to significantly reduce moisture losses due to evaporation.

Most striking is the new disc arrangement on both implement sides. This not only ensures directional stability, without lateral pull, and thus reduces fuel consumption, but also allows precise pass alignment, also using GPS.

The discs are arranged to produce symmetrical forces on both implement sides. The three central discs on the Rubin 10 have been offset along the longitudinal axis to ensure that they are able to work collision-free across the full width at a line distance of 12.5 cm. This patented solution optimises the flow of soil and results in even cultivation across the full working width. The discs engage across their full surfaces from a working depth of 7 cm. An undercut maintains optimal penetration and boosts mixing efficiency even further.
  Technical Data

Rubin 10 U



 Rubin 10/400 U Rubin 10/350 U Rubin 10/300 U Rubin 10/250 U
Body Spacing 400 350 300 250
Tractor output (HP) 140 - 200 122 - 175 105 - 150 87 - 125
Tractor output (kW) 103 - 147 90 - 129 77 - 110 65 - 92
Weight (kg) 1.890 1.760 1.630 1.480
Discs 32 28 24 20
Discs diameter (mm) 645 645 645 645

Rubin 10 KU

  Rubin 10/500 KU Rubin 10/450 KU Rubin 10/400 KU
Body Spacing 400 450 400
Tractor output (HP) 175 - 250 157 - 225 140 - 200
Tractor output (kW) 129 - 184 115 - 165 103 -147
Weight (kg) 3.161 2.961 2.740
Discs 40 36 32
Discs diameter 645 645 645


Rubin 10 KUA

  Rubin 10/700 KUA Rubin 10/600 KUA Rubin 10/500 KUA Rubin 10/450 KUA Rubin 10/400 KUA
Body Spacing 700 600 500 450 400
Tractor output (HP) 245 - 350 210 - 300 175 - 250 157 - 225 140 - 200
Tractor output (kW) 180 - 257 154 - 221 129 - 184 115 - 165 103 - 147
Weight (kg) 5.450 4.600 3.850 3.550 3.350
Discs 56 48 40 36 32
Discs diameter (mm) 645 645 645 645 645



Rubin 9 Gigant


  Rubin 9 Gigant 10 S/800 Rubin 9 Gigant 12 S/1000 Rubin 9 Gigant 12 S/1200
Body Spacing 800 1000 1200
Tractor output (HP) 280 - 400 350 - 500 420 - 600
Tractor output (kW) 206 - 294 257 - 368 309 - 441
Weight (kg) 2730 4340 4890
Discs 64 80 96
Discs diameter (mm) 620 620 620

   Standard Equipment

Rubin 10 U

  • Lower link attachment Cat. 3N=L2 Z3
    2.5 m: or Cat. 2
    3 m - 4 m: or Cat. 3 or 4N=L3 Z4
  • Underframe clearance 80 cm
  • Two integrated rebound harrows
  • Mechanically swivable outer concave discs (3 m - 4 m)
  • Headstock reinforced, for coupling to Quick Hitch
  • Cat. 3/Cat. 4N (ANSI/ASAE 278.8)
  • Concave discs DuraL Disc 645 x 6 mm, notched with automatic overload safety device
  • Without roller

Rubin 10  KU

  • Lower link attachment Cat. 3N
    2.5 m: or Cat. 2
    3 m - 4 m: or Cat. 3 or 4N=L3 Z4
  • Underframe clearance 80 cm
  • Two integrated rebound harrows
  • Mechanically swivable outer concave discs (3 m - 4 m)
  • Headstock reinforced, for coupling to Quick Hitch Cat. 3/Cat. 4N (ANSI/ASAE 278.8)
  • Concave discs DuraL Disc 645 x 6 mm, notched with automatic overload safety device
  • Without roller

Rubin 10 KUA

  • Solo axle
  • Axle with wheels 16.0/70-20, 1,070 x 418 mm
  • Lower link attachment Cat. 3 (or Cat. 4N= L3 Z4 or Cat. 4)
  • Underframe clearance 80 cm
  • Two integrated rebound harrows
  • Concave discs DuraMaxx Disc 645 x 6 mm, notched with automatic overload safety device
  • Hydraulic folding with automatic transport locking device
  • Hydraulic working depth adjustment
  • Self-adjusting depth control wheel at Rubin 10/700 KUA, with wheel size 10.0/75-15.3, 770 x 277 mm
  • Without roller
  • Without lighting equipment
  • Without brake system

Rubin 9 Gigant

  • Ohne Walze
  • Ohne Beleuchtungsanlage
  • Ohne Bremsanlage
  • Zugöse Ø 58 mm zur Anhängung an doppellaschiges Zugpendel (wahlweise Ø 48 mm)
  • Achse mit Radgröße 550/45-22.5, 1.070 x 550 mm
  • Tiefenführung
  • Rahmenhöhe 80 cm
  • Zwei integrierte Striegel
  • Hohlscheiben 620 x 6 mm gezackt mit automatischer Überlastsicherung
  • Dreipunktgestänge hydraulisch doppelt wirkend



Specifications
Model
Rubin 10
Category Name
Tillage Equipment
Sale Type
New
Manufacturer
LEMKEN
Videos

Videos

Documents

What Fertilizer Storage Options Are Available?

Fertilizer plays an important role in the success of your growing season. After using tillage equipment, you may want to apply pre-plant fertilizers, and you’ll want to ensure that you have an adequate fertilizer storage solution for your farm. At Avonlea, we supply both dry hopper fertilizer and liquid fertilizer storage solutions. Contact a member of our team for support in finding the ideal fertilizer storage solution for your farm.

Which Tractor Type is Right for My Farm?

Tractors are necessary when looking to effectively use tillage equipment. When you are looking for tractors for sale, the experts at Avonlea have an ideal solution for your needs. Contact a member of our team and find the small, mid-size, or higher horsepower tractor that is perfectly suited to the operational and tillage needs of your farm.
