Tillage Equipment FOR SALE IN MANITOBA

Tilling soil prepares fields for planting and can help to control weeds. However, there are some disadvantages to tilling that should be considered. When tilling is necessary, having the right tillage equipment can protect the soil while creating the environment needed for a successful growing season. When it comes to finding tillage equipment for sale, you can count on the experts at Avonlea Farm Sales Ltd to have just what you are looking for.

Founded by farmers in 1988, the experts at Avonlea Farm Sales Ltd have first-hand experience within the farming industry and understand the unique needs of farmers. With a commitment to providing high-quality farming equipment, you’ll find tillage implements, including chisel plows, disc plows, disc harrows, land rollers, and more, within our inventory. Contact a member of our team today to discuss the unique needs of your farm and find the tillage machine that is best suited to your needs.

  Back
ID # 17354889

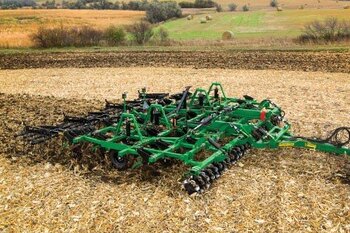

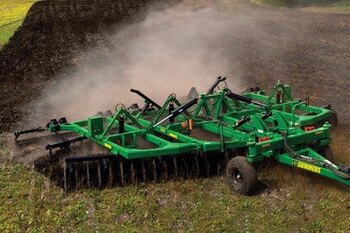

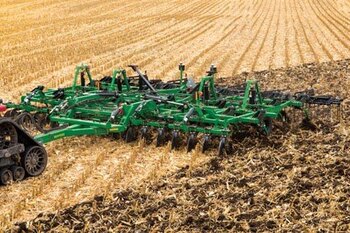

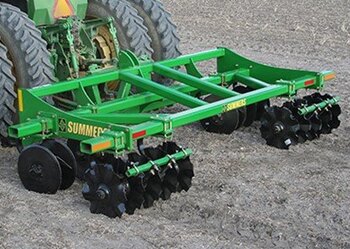

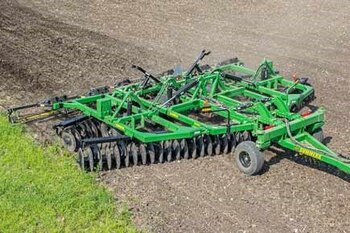

Summers Supercoulter

  • Summers Supercoulter
Specs & Literature
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

First introduced in 1999, the Supercoulter is the original vertical tillage tool. In fact, it’s still one of the few true vertical tillage tools on the market today. That’s because, while other manufacturers may claim to offer vertical tillage, their equipment usually has concave, angled blades that move soil laterally. This can cause compacted soil layers, defeating the entire purpose of vertical tillage. On the other hand, Summers uses two rows of straight-tracking coulter blades on the Supercoulter to aggressively chop residue and slice through the soil, eliminating soil layers and promoting deep root growth.

Applications: vertical tillage, spring tillage, spring residue management, fall tillage, fall residue management, soil conditioning, seedbed preparation, no till, conventional tillage
Specifications
Model
Supercoulter
Category Name
Tillage Equipment
Sale Type
New
Manufacturer
Summers
models



SC1510 (11'-15')
Working Width 11’ 15’
Transport Width 11' 1" 15' 1"
Transport Height 5' 8" 5' 8"
Length Without Attachments 20’ 20’
Gangs 4 4
Total Blades 26 36
Blade Spacing 10" 10"
Total Bearings 8 8
Gang Mounting 2 C-shanks per gang section 2 C-shanks per gang section
Wheels, Center   2 sets, duals
Hubs, Center 6-bolt, HD* 6-bolt, HD*
Tires, Center IF280/70R15 ** IF280/70R15 **
Hyd. Cyl., Main Lift One rephasing 8" stroke per set of wheels One rephasing 8" stroke per set of wheels
Master Hyd. Cyl. Dia. 4.5" 4.5"
Estimated Weight*** 6,970 lbs. 8,850 lbs.
Approx. Engine HP*** 55-95 74-129
*  8-bolt HD optional
** IF320/70R15 optional
*** Weight and HP requirements without mounted attachments





  SC1030 (20'-30') SC1535 (30' HD)
Working Width 20’ 23’ 30’ 30’
Transport Width 14' 3" 15' 8" 15' 4" 19' 6"
Transport Height 8' 8" 10' 3" 14' 10' 9"
Length Without Attachments 20’ 20’ 20’ 20'
Gangs 8 8 12 8
Blades, Center 26 26 26 36
Blades Per Wing 11 15 18 18
Total Blades 48 56 72 72
Blade Spacing 10" 10" 10" 10"
Total Bearings 16 16 24 16
Gang Mounting 2 C-shanks per gang section 2 C-shanks per gang section 2 C-shanks per gang section 2 C-shanks per gang section
Wheels, Center 2 sets, duals  2 sets, duals 2 sets, duals 2 sets, duals
Wheels, Wing N/A 1 set, duals 1 set, duals 1 set, duals
Hubs, Center 8-bolt, HD 6-bolt, HD* 8-bolt, HD 8-bolt, HD
Hubs, Wing N/A 6-bolt, HD* 6-bolt, HD* 6-bolt, HD*
Tires, Center IF320/70R15*** IF280/70R15** IF320/70R15*** IF320/70R15***
Tires, Wing N/A IF280/70R15 IF280/70R15 IF280/70R15**
Hyd. Cyl., Main Lift One rephasing 8" stroke per set of wheels One rephasing 8" stroke per set of wheels One rephasing 8" stroke per set of wheels One rephasing 8" stroke per set of wheels
Master Hyd. Cyl. Dia. 4.5" 5" 5" 5.5"
Hyd. Cyl., Wing Lift 4" x 33" 4" x 33" 5" x 33" 4" x 33"
Estimated Weight*** 13,550 lbs. 15,100 lbs. 17,950 lbs. 21,350 lbs.
Approx. Engine HP*** 100-172 112-197 147-257 147-270
  *  8-bolt HD optional
** IF320/70R15 optional
*** 340/65R18 optional
**** Weight and HP requirements without mounted attachments		 *  8-bolt HD optional
** IF320/70R15 optional
*** 340/65R18 optional
**** Weight and HP requirements without mounted attachments
  SC1530 (30'-40')
Working Width 30’ 35’ 40’
Transport Width 19' 6" 19' 6" 19' 6"
Transport Height 10' 9" 13- 10" 16'
Length Without Attachments 20' 20' 20'
Gangs 8 12 12
Blades, Center 36 36 36
Blades Per Wing 18 24 30
Total Blades 72 84 96
Blade Spacing 10" 10" 10"
Total Bearings 16 24 24
Gang Mounting 2 C-shanks per gang section 2 C-shanks per gang section 2 C-shanks per gang section
Wheels, Center 2 sets, duals 2 sets, duals 2 sets, duals
Wheels, Wing 1 set, duals 1 set, duals 1 set, duals
Hubs, Center 6-bolt, HD* 8-bolt, HD 8-bolt, XHD
Hubs, Wing 6-bolt, HD* 6-bolt, HD* 8-bolt, HD
Tires, Center IF280/70R15 ** IF320/70R15*** 340/65R18
Tires, Wing IF280/70R15 ** IF280/70R15 ** IF320/70R15***
Hyd. Cyl., Main Lift One rephasing 8" stroke per set of wheels One rephasing 8" stroke per set of wheels One rephasing 8" stroke per set of wheels
Master Hyd. Cyl. Dia. 5" 5.5" 5.5"
Hyd. Cyl., Wing Lift 4" x 33" 5" x 33" 5" x 33"
Estimated Weight*** 17,400 lbs. 20,500 lbs. 22,200 lbs.
Approx. Engine HP*** 147-257 175-301 240-420
  *  8-bolt HD optional
** IF320/70R15 optional
*** 320/65R18 optional
**** Weight and HP requirements without mounted attachments
  SC1550 (45'-50')
Working Width 45’ 50’
Transport Width 19' 6" 19' 6"
Transport Height 14' 4" 16' 8"
Length Without Attachments 20' 23"
Gangs 16 16
Blades, Center 36 36
Blades Per Wing 24+12 30+12
Total Blades 108 120
Blade Spacing 10" 10"
Total Bearings 32 32
Gang Mounting 2 C-shanks per gang section 2 C-shanks per gang section
Wheels, Center 2 sets, duals 2 sets, duals
Wheels, Wing N/A 1 set, duals
Hubs, Center 8-bolt, XHD 8-bolt, XHD
Hubs, Wing 8-bolt, HD 8-bolt, XHD
Tires, Center 340/65R18 340/65R18
Tires, Wing IF280/70R15 * 320/65R18
Hyd. Cyl., Main Lift One rephasing 8" stroke per set of wheels One rephasing 8" stroke per set of wheels
Master Hyd. Cyl. Dia. 6" 6"
Hyd. Cyl., Wing Lift 5" x 33" 5" x 33"
Estimated Weight*** 26,100 lbs. 27,250 lbs.
Approx. Engine HP*** 240-420 250-450
  * IF320/70R15 optional
** Weight and HP requirements without mounted attachments
  SC1535 (40' HD) SC1556 (60')
Working Width 40’ HD 60’
Transport Width 19' 6" 22' 10"
Transport Height 16' 17' 4"
Length Without Attachments 20' 26'
Gangs 12 20
Blades, Center 36 36
Blades Per Wing 30 30+24
Total Blades 96 144
Blade Spacing 10" 10"
Total Bearings 24 40
Gang Mounting 2 C-shanks per gang section 2 C-shanks per gang section
Hubs, Center 8-bolt, XHD 10-bolt, XHD
Hubs, Wing 8-bolt, HD 8-bolt HD
Tires, Center 340/65R18 425/65R22.5
Tires, Wing 12.5L x 15" IF320/70R15
Hyd. Cyl., Main Lift One rephasing 8" stroke per set of wheels One rephasing 8" stroke per set of wheels
Master Hyd. Cyl. Dia. 6" 6"
Estimated Weight** 25,374 lbs. 33,850 lbs.
Approx. Engine HP** 218-385 342-620
  ** Weight and HP requirements without mounted attachments *  8-bolt HD optional
** IF320/70R15 optional
*** Weight and HP requirements without mounted attachments
options

Green or Red – You Choose

Brand loyalty is fierce between Team Red and Team Green in the agriculture world, which is something Summers has long understood. Well, we’ve listened and are offering you a choice. Now any time you order custom equipment from Summers, pick between the color that fits your operation best – green or red. It’s that simple.
blade selection chart

features and benefits

sup True Vertical Tillage

Mounted on a rectangular tube frame, the Supercoulter’s blades are designed to run straight for true vertical tillage performance. Simply put, it doesn’t move soil horizontally. Instead, it “scores” the soil, helping to achieve optimal soil fracturing and promoting deep root growth.

VRT Hydraulic Hitch

The patented hydraulic hitch allows you to transfer weight between the front and rear gangs. Placing more weight on the front helps the Supercoulter slice through tough residue and hard, dry ground. Shifting weight to the rear results in more aggressive soil movement and better residue incorporation. The hydraulic hitch can also be operated in float position, which works well for seedbed preparation and operation in rocky conditions.

VRT Super-Flex™ C-Shanks

The unique Super-Flex™ gang mounting system is designed to absorb shocks from rocks and stumps, providing protection from blade damage. The toggle-mounted, triple-seal ball bearings are also designed to self-align as the gang flexes.

flotation Blades

The Supercoulter is offered with a variety of blade options to customize your tillage performance. The front and rear gangs can even be equipped with different blade types to match any personal preference. Duracoat blades with WEAR-TUFF™ lining are also available to extend blade life by as much as 3 to 5 times.

flotation Accurate Depth Control

Dual axles help the Supercoulter maintain an accurate depth along all field contours. Also, the standard high-floatation tires and heavy-duty hubs are ideal for use in a variety of soil conditions.

flotation Mounted Harrows

Optional 3- and 4-bar harrows can be adjusted for deep or shallow penetration. They feature a heavy, yet flexible design for floating over rocks and deep ditches.

flotation Mounted Rolling Choppers

For optimum residue sizing and incorporation, rolling choppers are an ideal attachment. They come with induction-hardened replaceable blades and triple-lip-sealed bearings for maximum durability.

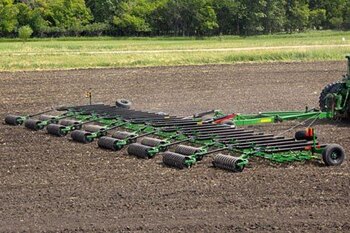

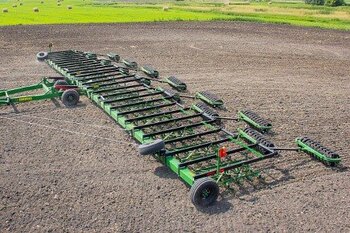

flotation Mounted Harrow/Basket Combo

Featuring patent-pending internal mud scrapers, the rolling baskets are ideal for breaking up clumps and providing a uniform soil profile in most conditions. They are used in conjunction with MH1104 mounted harrows for the ultimate field finishing tool.
Documents

What Fertilizer Storage Options Are Available?

Fertilizer plays an important role in the success of your growing season. After using tillage equipment, you may want to apply pre-plant fertilizers, and you’ll want to ensure that you have an adequate fertilizer storage solution for your farm. At Avonlea, we supply both dry hopper fertilizer and liquid fertilizer storage solutions. Contact a member of our team for support in finding the ideal fertilizer storage solution for your farm.

Which Tractor Type is Right for My Farm?

Tractors are necessary when looking to effectively use tillage equipment. When you are looking for tractors for sale, the experts at Avonlea have an ideal solution for your needs. Contact a member of our team and find the small, mid-size, or higher horsepower tractor that is perfectly suited to the operational and tillage needs of your farm.
