Tillage Equipment FOR SALE IN MANITOBA

Tilling soil prepares fields for planting and can help to control weeds. However, there are some disadvantages to tilling that should be considered. When tilling is necessary, having the right tillage equipment can protect the soil while creating the environment needed for a successful growing season. When it comes to finding tillage equipment for sale, you can count on the experts at Avonlea Farm Sales Ltd to have just what you are looking for.

Founded by farmers in 1988, the experts at Avonlea Farm Sales Ltd have first-hand experience within the farming industry and understand the unique needs of farmers. With a commitment to providing high-quality farming equipment, you’ll find tillage implements, including chisel plows, disc plows, disc harrows, land rollers, and more, within our inventory. Contact a member of our team today to discuss the unique needs of your farm and find the tillage machine that is best suited to your needs.

  Back
ID # 17354891

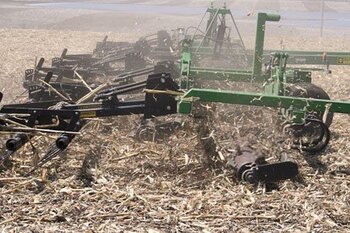

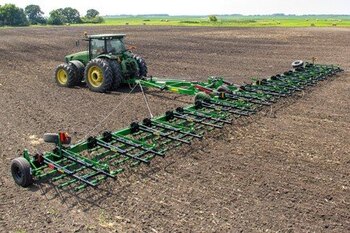

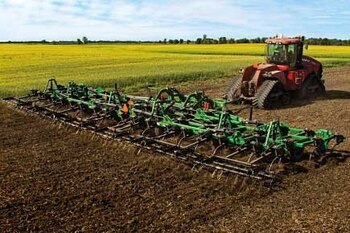

Summers Superharrow 3580

  • Summers Superharrow 3580
Specs & Literature
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Previously known as the Superharrow 2650, the SH3580 has oil-tempered teeth that are 26 inches long and 1/2 inch in diameter. They have 2.4-inch effective spacing with 16-inch spacing between bars. Additionally, the sections are 8-feet wide for high-performance residue management and field finishing. This tool is slightly less aggressive than the Superharrow 3960.

Applications: seedbed preparation, spring tillage, spring residue management, fall residue management, soil conditioning
Specifications
Model
Superharrow 3580
Category Name
Tillage Equipment
Sale Type
New
Manufacturer
Summers
models



SH3580
Working Width 56' 72' 88'
Transport Width 13' 2" 13' 2" 13' 2"
Center Section Width 8' 8' 8'
Estimated Weight 11,050 lbs. 12,950 lbs. 15,250 lbs.
Number of 8' Sections 7 9 11
Hitch Length 22' 22' 22'
Hitch Construction 4" x 8" tubing 4" x 8" tubing 4" x 8" tubing
Drawbar Construction 8" x 8" tubing 8" x 8" tubing 8" x 8" tubing
Hitch Tires (4) 280/70 R15 280/70 R15 280/70 R15
Drawbar Tires (2) 280/70 R15 280/70 R15 280/70 R15
Transport Tires (2) LT265/75R16E LT265/75R16E LT265/75R16E
Approx. Engine HP* 155-275 200-350 245-425
*  Engine horsepower required will vary upon soil conditions, tillage depth and operating speed
options

Green or Red – You Choose

Brand loyalty is fierce between Team Red and Team Green in the agriculture world, which is something Summers has long understood. Well, we’ve listened and are offering you a choice. Now any time you order custom equipment from Summers, pick between the color that fits your operation best – green or red. It’s that simple.
features and benefits

sup Heavy Duty Drawbar

Our 8-by-8-inch drawbar tube is bigger and stronger than anything else available. It provides maximum strength for pulling the harrow.

VRT Auto-Folding Pull Cables

Simply put, cables are better than pull tubes when it comes to harrow design. That’s because cables allow easier unfolding from transport to field position. And they’re engineered to accommodate the rearward stress that’s placed on the inside wing of a harrow during a tight turn. Even more, the Summers auto-folding cable design has a positive lock system and a back-up feature that allows the operator to reverse while the harrow is unfolded to reach isolated areas and tight corners.

VRT Top-Mounted Torsion Bar

Our exclusive top-mounted torsion bar springs provide a streamlined design for optimum residue clearance.

flotation Adjustable Tooth Angle

A spring-loaded adjustment lever allows the operator to angle the teeth up to 45 degrees from vertical position. The front bar adjusts independently of the other four, allowing the front bar to work more aggressively, while the rest of the section clears the residue.

Flotation Tires

The standard 11 LRF x 15” tires on the drawbar can be replaced with optional 31 x 13.5” tires for increased flotation.
Documents

What Fertilizer Storage Options Are Available?

Fertilizer plays an important role in the success of your growing season. After using tillage equipment, you may want to apply pre-plant fertilizers, and you’ll want to ensure that you have an adequate fertilizer storage solution for your farm. At Avonlea, we supply both dry hopper fertilizer and liquid fertilizer storage solutions. Contact a member of our team for support in finding the ideal fertilizer storage solution for your farm.

Which Tractor Type is Right for My Farm?

Tractors are necessary when looking to effectively use tillage equipment. When you are looking for tractors for sale, the experts at Avonlea have an ideal solution for your needs. Contact a member of our team and find the small, mid-size, or higher horsepower tractor that is perfectly suited to the operational and tillage needs of your farm.
