Overview

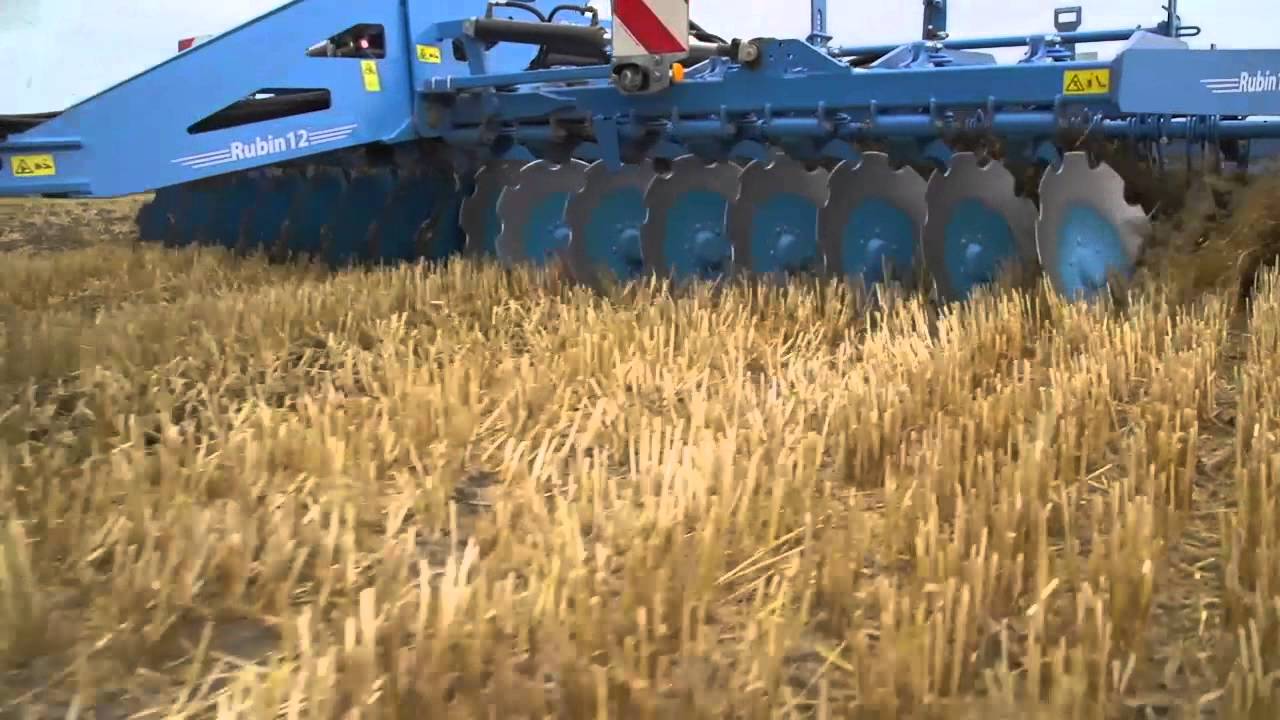

Rubin 12

Compact disc harrow with deep impact

With the Rubin 12, LEMKEN’s range of compact disc harrows includes an implement that can operate at the same 20 cm working depth as a cultivator. The Rubin 12 is therefore suitable both for stubble cultivation and for primary soil tillage, even in very heavy soil conditions.

Two rows of serrated concave discs with a diameter of 736 mm produce intensive mixing and crumbling.
The symmetrical arrangement of the discs in each row enables working without lateral pull, even at high driving speeds.
The 20° angle of the discs to the soil and the 16° angle to the direction of travel ensure optimum penetration and enable cultivation across the full width from a working depth of 7 cm.
The legs are specially curved and coiled and thus provide maximum clearance between the discs. This prevents blockages, along with the slight offset of the middle discs.
High speeds of travel at reduced slip result in lower fuel consumption and a higher acreage performance.
An impact harrow behind the first row of discs produces intensive mixing and crumbling, while a levelling harrow behind the second row distributes and levels the soil optimally.
In the mounted version, the Rubin 12 can be equipped with a Uni wheel, which transfers loads to the front axle when the implement is raised. This version includes a novel semi-mounting system that does not require an additional control unit.

Technical Data

Rubin 12	Rubin 12/300 U	Rubin 12/350 U	Rubin 12/400 U
Body Spacing	300	350	400
Tractor output (HP)	135 - 240	158 - 280	180 - 320
Tractor output (kW)	99 - 177	116 - 206	132 - 235
Weight (kg)	2046	2141	2616
Discs	18	18	22
Discs diameter	736	736	736

Rubin 12 KUA	Rubin 12/400 KUA	Rubin 12/500 KUA	Rubin 12/600 KUA	Rubin 12/700 KUA
Body Spacing	400	500	600	700
Tractor output (HP)	180 - 320	225 - 400	270 - 480	315 - 560
Tractor output (kW)	132 - 235	165 - 294	199 - 353	232 - 412
Weight (kg)	4402	5257	5732	6630
Discs	22	30	34	42
Discs diameter	736	736	736	736

Standard Equipment

Rubin 12

Ohne Walze
Unterlenkeranschluss Kat. 3 (wahlweise Kat. 3N=L2 Z3 oder 4N=L3 Z4)
Rahmenhöhe 80 cm
Integrierter Prallstriegel hinter erster Scheibenreihe, Nivellierstriegel hinter zweiter Scheibenreihe
Einklappbare äußere Hohlscheiben
Hohlscheiben 736 x 6 mm gezackt mit automatischer Überlastsicherung
Seitenschilde

Rubin 12 KUA

Ohne Walze
Ohne Beleuchtungsanlage
Ohne Bremsanlage
Integrierte Aufsatteleinrichtung
Achse mit Radgröße 550/45-22.5
Unterlenkeranschluss Kat. 3 (wahlweise Kat. 3N=L2 Z3, 4N=L3 Z4 oder 4=L4 Z4)
Rahmenhöhe 80 cm
Integrierter Prallstriegel hinter erster Scheibenreihe, Nivellierstriegel hinter zweiter Scheibenreihe
Hohlscheiben 736 x 6 mm gezackt mit automatischer Überlastsicherung
Hydraulische Transportverriegelung
Hydraulische Arbeitstiefeneinstellung
Seitenschilde
