Overview

1500 Series Truck Load Conveyors
Move your seed or grain with a Meridian 1548 Conveyor. Our all-purpose conveyors are perfect for a stationary set-up or for any field operation using the self-propelled hydraulic mover. Our simple belt tensioning guide makes it easy to maintain belt tension, and with the low profile hopper, you have better access to smaller clearance areas.



Specifications
Model
1500 Series Truck Load Conveyors
Category Name
Augers and Conveyors
Sale Type
New
Manufacturer
Meridian
models
BELT SURFACE LENGTH 45’ + 2’ in hopper
WEIGHT | W/ HI-POWER MOVE 2535 lbs | 2,690 lbs
LOWERED TRANSPORT HEIGHT 12’ 7’’
MAX RAISED DISCHARGE HEIGHT 21’ 1’’
RAISED DISCHARGE | W/ HI-POWER MOVE 18’ 2’’ | 20’ 8’’
INTAKE REACH (LOWERED-RAISED) | W/ HI-POWER MOVE 19’ 10’’ – 20’ 6’’ | 14’ 4’’ – 13’ 1’’
WHEEL TRANSPORT WIDTH 7’ 10’’
LIFT MECHANISM Standard manual crank, hydraulic and electric winch available
MIN. GAS HORSEPOWER 26.5
MIN. ELECTRIC HORSEPOWER 20hp
BELT WIDTH 15’’
HOPPER WIDTH & LENGTH 36’’w x 60’’l
HOPPER HEIGHT Collapsed: 8’’ | Extended 16’’
CAPACITY 6-6,500BPH
features
1. Standard S-Drive helps maintain proper tension
2. Powder coat finish for superior long lasting performance
3. Highway-rated tires & rims
4. Kohler EFI engine with cold weather kit
5. Low profile hopper collapses down to 8’’ to fit under the lowest trucks

Optional Features

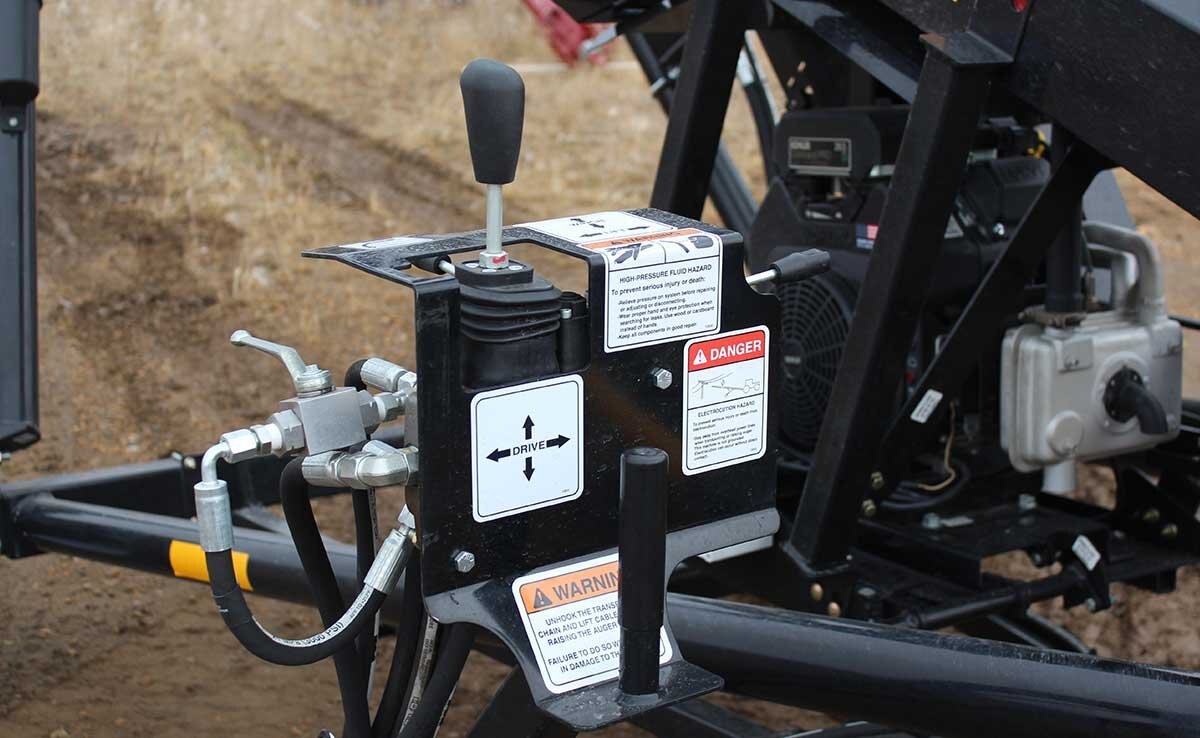

1. Hi-PowerTM self-propelled hydraulic mover
2. Hydraulic lift winch





applications
1. Used for loading trucks and tenders.
2. Seed
3. Grain
4. Feed
