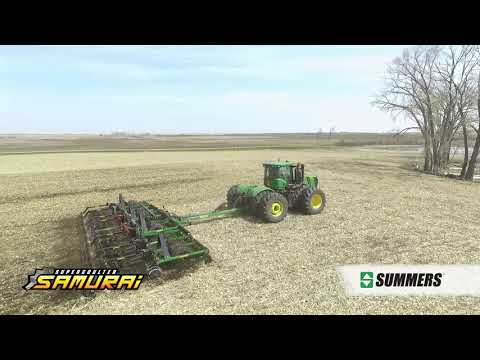

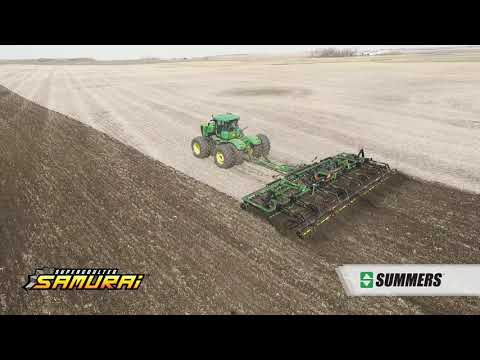

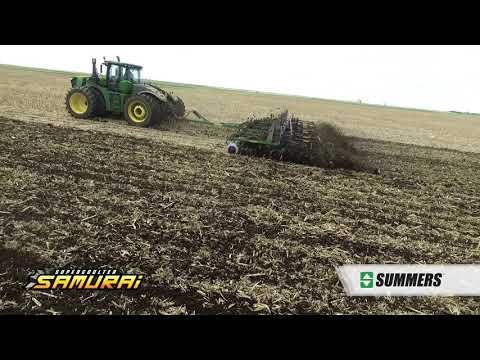

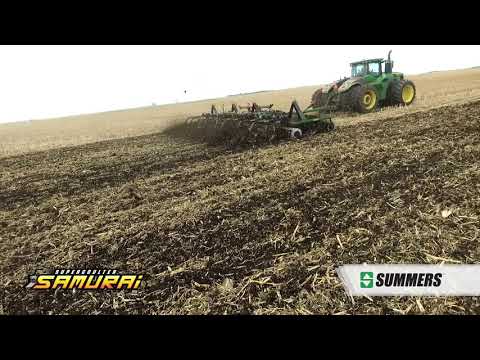

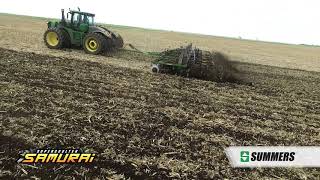

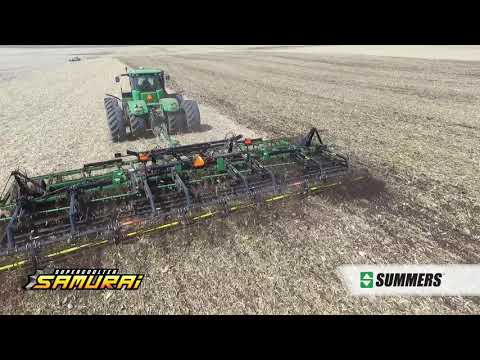

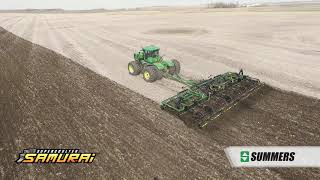

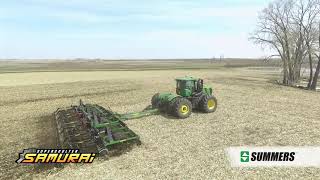

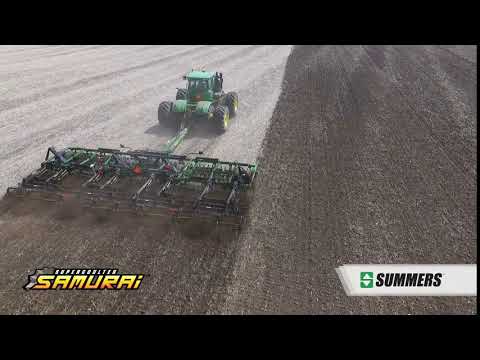

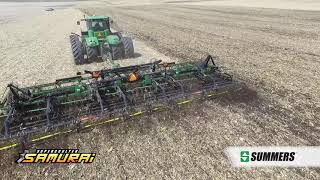

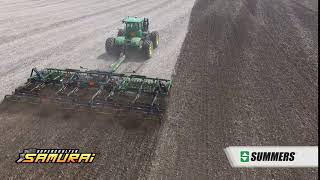

SUMMERS SAMURAI 40' SUPER-COULTER c/w Harrows and Rolling Baskets

Last one for Spring 2024!

The NEXT GENERATION of VERTICAL TILLAGE

Light Tillage Performance with Improved Soil Disturbance

The front gang blades are positioned at a 3-degree angle, and the rear gang blades are positioned at a 5-degree angle. Thorough testing has shown this to be an optimum configuration to achieve the ideal field finish for most farmers. However, the gang angles can be manually adjusted in the shop from 1 to 5 degrees, if desired, to accommodate more unique soil types, conditions and personal preferences.

Blades are spaced 10 inches apart on each gang with the front and rear gangs offset for an effective 5-inch blade spacing. This design results in superior residue flow, yet maximum tillage coverage for thorough soil tilth and excellent residue sizing.

Samurai Blades

The Summers exclusive Osmundson Mfg. Co. patented Samurai disk blades on the Supercoulter Samurai offer the latest in blade technology. They are slightly concave with a sawtooth design that excels at sizing residue and moving soil. The blades perform well in both wet soils and hard, dry conditions, and they are heat treated for extended life.

Light Footprint

Similar to our popular Supercoulter, the simplistic design of the Supercoulter Samurai has a light enough footprint to help producers get in the field earlier than bulkier tillage tools allow. This advantage allows farmers to complete spring fieldwork quicker, so they can plant sooner.

Hydraulic Hitch

The patented hydraulic hitch allows operators to easily optimize in-field performance by transferring weight between the front and rear gangs. More weight can be shifted to the front to help the Supercoulter Samurai slice through tough residue and hard, dry ground. Shifting weight to the rear results in more aggressive soil movement and better residue incorporation. The hydraulic hitch can also be operated in float position, which works well for seedbed preparation and operation in rocky conditions.

Super-Flex™ C-Shanks

The unique Super-Flex™ gang mounting system is designed to absorb shocks from rocks and stumps, providing protection from blade damage. The toggle-mounted, 7-Lip sealed ball bearings are also designed to self-align as the gang flexes.

Accurate Depth Control

The Supercoulter Samurai offers 0 to 5.5 inches of tillage depth. Dual axles help the implement maintain an accurate depth along all field contours. Also, the standard high-floatation tires and heavy-duty hubs are ideal for use in a variety of soil conditions.

Harrow and Hydraulic Rolling Basket

This recommended finishing attachment is an ideal combination for distributing residue, breaking up clumps and producing a uniform soil profile. The rolling baskets feature Summers’ patented internal mud scrapers to prevent mud build-up. The hydraulic basket control allows you to easily vary the amount of pressure on the baskets or raise them for certain conditions.
