Overview

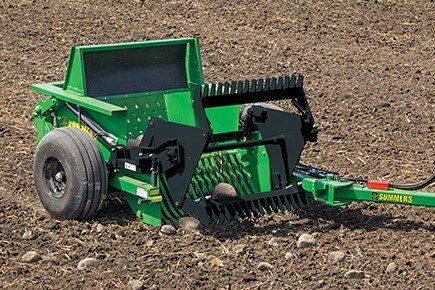

When it comes to continuous rock pickers, tough isn’t good enough. It needs to be Field Tested Tough if you want something that holds up to years of abuse. Only Summers incorporates as many heavy-duty features, such as planetary hydraulic direct drive and reinforced batts, to keep you running, whether your rocks are two inches in diameter or 20.

Applications: rock removal, seedbed preparation
Specifications
Model
Rock Picker
Category Name
Tillage Equipment
Sale Type
New
Manufacturer
Summers
models



9R0700
Estimated Weight 5,100 lbs.
Picking Width 60"
Picking Speed 2-4 mph
Minimum Rock Diameter 2"
Maximum Rock Diameter 20"
Wheels 16.5L x 16.1 flotation tires
Hubs 8-bolt
Tractor Horsepower Requirement 60
Hydraulic Flow Requirement 9 GPM



options

Green or Red – You Choose

Brand loyalty is fierce between Team Red and Team Green in the agriculture world, which is something Summers has long understood. Well, we’ve listened and are offering you a choice. Now any time you order custom equipment from Summers, pick between the color that fits your operation best – green or red. It’s that simple.
features and benefits

sup Steep Dump Angle

The rock picker is equipped with two 3-by-31-inch hydraulic cylinders with hardened shafts to tip the hopper. The system is designed with a 38-inch dump height and extra-steep dumping angle to ensure all rocks and debris are removed.

VRT Extra-Long Hitch

An extra-long hitch provides greater visibility of the rock picking operation when using a tractor equipped with dual rear wheels. A shorter hitch can be special ordered upon request.

flotation Heavy Duty Batts

The large-diameter reel is engineered with three reinforced batts for maximum durability. The batts feature a spring-loaded trip action, allowing them to operate damage-free in tough conditions. For added reliability, the batts pivot on greaseable steel pins within replaceable bushings.

flotation Planetary Hydraulic Direct Drive

There are no chains or sprockets to wear out and constantly adjust. Our low-maintenance, high-torque reduction planetary gear system runs in an oil bath and is direct coupled to the hydraulic motor, which is internally protected for extreme use.

flotation Thick Steel Frame

To withstand heavy abuse, we gave the rock picker a durable frame made of reinforced 5-inch square tubing.

flotation Flotation Tires

The standard 16.5L x 16.1 tires are ideal for use on any soil profile.

flotation Hydraulic Swing Hitch

By activating your third hydraulic remote, you can swing the hitch from transport position to the offset position for ample working clearance.

flotation Reinforced Hopper

The high-capacity hopper is gusseted for added stiffness and strength. It also has a grated floor and perforated back plate for maximum sifting of dirt.

flotation Extra-Long Tines

The specially contoured picking tines are extra long, so more dirt can fall through before reaching the hopper.

flotation Clevis Hitch

A clevis hitch comes standard on the Rock Picker.

flotation Electric Solenoid Lift

This option allows simultaneous operation of the reel and rake on open-center tractor hydraulic systems with insufficient oil flow.
